Salient Features
- 31CrV3 Chrome Vanadium Steel
- Full Hardened & Tempered 46 – 52 HRC
- Available in Chrome Plated Head Polish & Matt Finish
- Conforms to DIN 838 / DIN 1711-691
Specifications

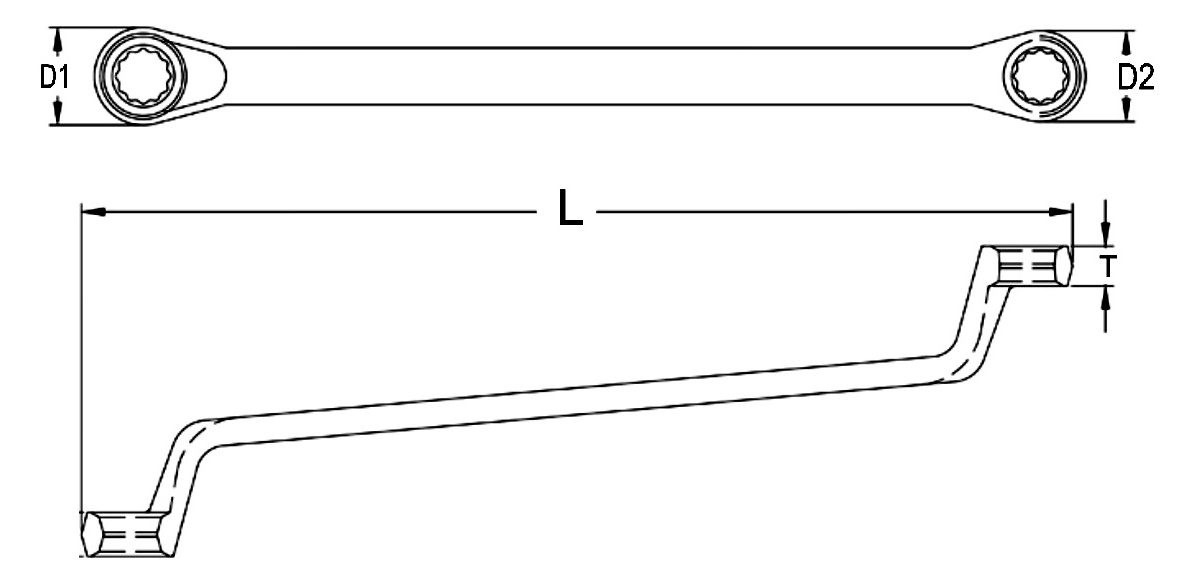

| Size (mm) | Size (SAE) | L (mm) | T (mm) | D1 (mm) | D2 (mm) | Packing / Carton | Gross Wt. (Kgs) |
|---|---|---|---|---|---|---|---|
| 6 x 7 | 1/4 x 5/16 | 165 | 11 | 5.4 | 6.2 | 320 | 17.63 |
| 8 x 9 | 5/16 x 11/32 | 180 | 14 | 6.2 | 7.2 | 240 | 16.85 |
| 10 x 11 | 195 | 17 | 8.2 | 9 | 180 | 17.88 | |
| 12 x 13 | 7/16 x 1/2 | 216 | 20 | 9 | 10 | 120 | 14 |
| 14 x 15 | 1/2 x 9/16 | 239 | 25.5 | 10 | 10.8 | 120 | 16.59 |
| 16 x 17 | 5/8 x 11/16 | 262 | 28.5 | 11 | 11.7 | 100 | 16.96 |
| 17 x 19 | 290 | 28.5 | 11.7 | 12.6 | 80 | 17.02 | |
| 18 x 19 | 320 | 28.5 | 12 | 12.6 | 80 | 17.02 | |
| 19 x 22 | 320 | 28.6 | 13.6 | 28 | 60 | 16.14 | |
| 20 x 22 | 25/32 x 7/8 | 320 | 28.6 | 13.6 | 30 | 60 | 16.14 |
| 21 x 23 | 7/8 x 15/16 | 325 | 31.4 | 13.8 | 30.5 | 60 | 17.76 |
| 22 x 24 | 325 | 31.4 | 13.8 | 32.5 | 50 | 17.55 | |
| 24 x 26 | 337 | 32.4 | 14.6 | 32.5 | 40 | 15.08 | |
| 24 x 27 | 337 | 32.4 | 14.6 | 35.5 | 40 | 15.08 | |
| 25 x 28 | 346 | 34.4 | 14.8 | 37.5 | 40 | 17.54 | |
| 27 x 32 | 357 | 34.7 | 14.6 | 39.5 | 30 | 15.45 | |
| 30 x 32 | 1.1/8 x 1.1/4 | 360 | 36.3 | 17.5 | 43.5 | 30 | 15.45 |
