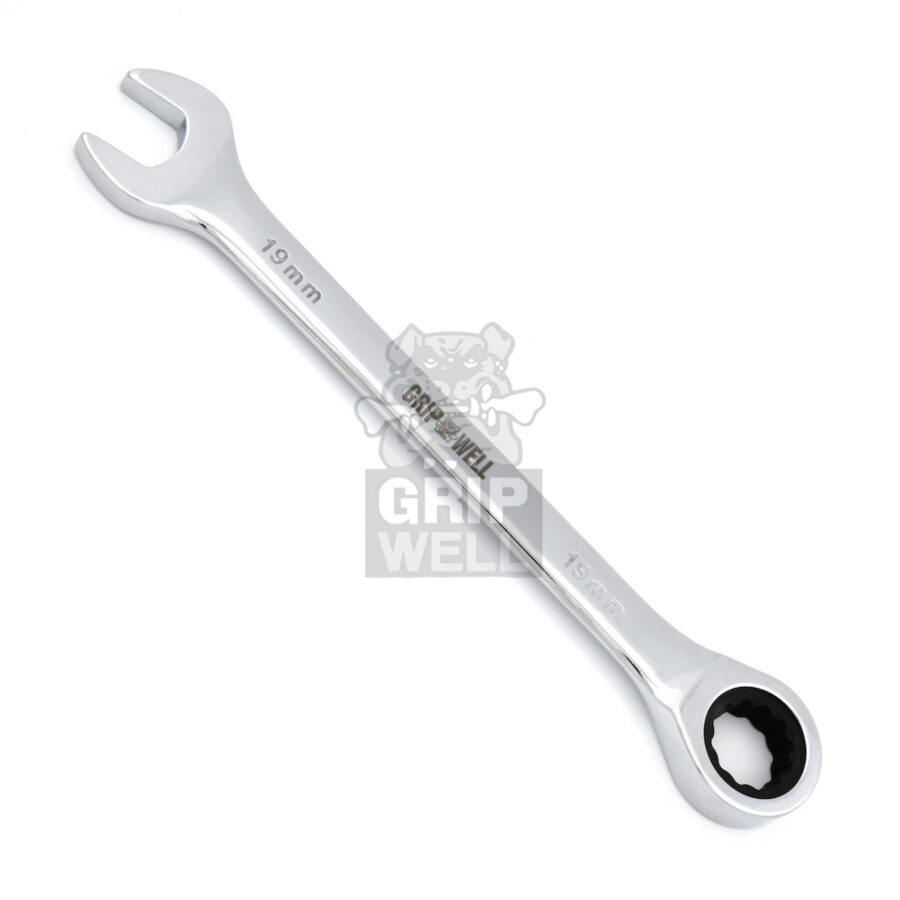

Salient Features
- Elliptical Pattern
- 31CrV3 Chrome Vanadium Steel
- 72 Teeth Ratchet Mechanism
- Full Hardened & Tempered 46 – 52 HRC
- Available in Full Polish Chrome Finish
- Conforms to DIN 3113 / IOS 1711-1 / IOS 691
Specifications
| Size (mm) | Size (SAE) | L (mm) | T (mm) | D1 (mm) | D2 (mm) | Packing / Carton | Gross Wt. (Kgs) |
|---|---|---|---|---|---|---|---|
| 8 | 5/16 | 136 | 5 | 18.6 | 18.4 | 360 | 17 |
| 9 | 11/32 | 139 | 5.1 | 20.4 | 19.6 | 360 | 17 |
| 10 | 3/8 | 150 | 5.3 | 22.3 | 22.7 | 240 | 16 |
| 11 | 7/16 | 162 | 5.6 | 25.4 | 23.8 | 200 | 16 |
| 12 | 171 | 5.8 | 26.6 | 25.4 | 160 | 14 | |
| 13 | 1/2 | 179 | 6.2 | 28.4 | 25.6 | 160 | 16 |
| 14 | 916 | 190 | 6.4 | 30.6 | 28.3 | 160 | 17 |
| 15 | 19/32 | 200 | 7.2 | 33.4 | 30 | 120 | 17 |
| 16 | 5/8 | 208 | 7.7 | 35.5 | 31.8 | 100 | 17 |
| 17 | 11/16 | 221 | 8.3 | 35.6 | 34.5 | 80 | 16 |
| 18 | 230 | 8.4 | 37.3 | 34.7 | 80 | 17 | |
| 19 | 3/4 | 237 | 8.5 | 40.1 | 35.7 | 60 | 14 |
