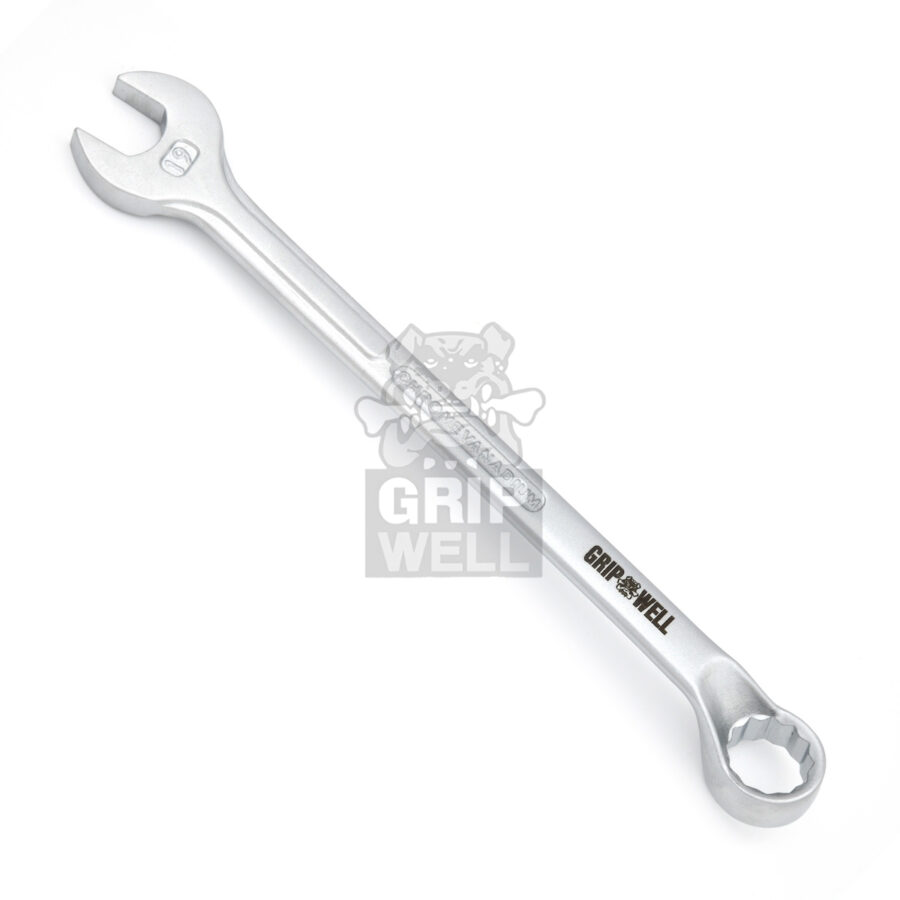

Salient Features
- 31CrV3 Chrome Vanadium Steel
- Full Hardened & Tempered 46 – 52 HRC
- Available in Matt Chrome Finish
- Conforms to DIN 3113B / DIN 1711-691
Specifications
| Size (mm) | Size (SAE) | L (mm) | T (mm) | D1 (mm) | D2 (mm) | Packing / Carton | Gross Wt. (Kgs) |
|---|---|---|---|---|---|---|---|
| 6 | 1/4 | 100 | 4 | 15.6 | 11.6 | 500 | 15 |
| 7 | 9/32 | 115 | 4 | 17.2 | 12.6 | 400 | 14 |
| 8 | 5/16 | 130 | 4 | 18.6 | 13.2 | 400 | 16 |
| 9 | 11/32 | 145 | 5 | 21.3 | 14.8 | 300 | 16 |
| 10 | 3/8 | 150 | 5.1 | 22.3 | 15.9 | 240 | 16 |
| 11 | 7/16 | 162 | 5.4 | 24.5 | 17.5 | 200 | 15 |
| 12 | 175 | 6 | 24.8 | 19.6 | 160 | 15 | |
| 13 | 1/2 | 185 | 6 | 29.4 | 20.8 | 120 | 14 |
| 14 | 916 | 200 | 6.8 | 32.1 | 22.5 | 120 | 15 |
| 15 | 19/32 | 205 | 6.8 | 33.5 | 22.6 | 120 | 17 |
| 16 | 5/8 | 215 | 7.2 | 33.8 | 23.5 | 100 | 15.5 |
| 17 | 11/16 | 230 | 7.4 | 35.7 | 25.8 | 80 | 15 |
| 18 | 240 | 7.5 | 37.8 | 26 | 80 | 16 | |
| 19 | 3/4 | 255 | 8 | 40.9 | 29.2 | 60 | 14 |
| 20 | 270 | 8.5 | 43.2 | 30.3 | 60 | 17.5 | |
| 21 | 13/16 | 275 | 8.9 | 45.1 | 31 | 50 | 15 |
| 22 | 7/8 | 290 | 9 | 47.3 | 33.5 | 50 | 17 |
| 23 | 295 | 9 | 48.2 | 35 | 50 | 17 | |
| 24 | 15/16 | 315 | 9.2 | 49.7 | 35.6 | 40 | 17.5 |
| 25 | 1 | 340 | 10.2 | 54.8 | 39 | 30 | 15 |
| 26 | 345 | 10.3 | 55.7 | 39.1 | 30 | 17.5 | |
| 27 | 1.1/16 | 350 | 10.5 | 56.8 | 41 | 30 | 17.5 |
| 28 | 1.1/8 | 360 | 10.8 | 57.1 | 42.5 | 30 | 18.5 |
| 30 | 1.1/4 | 390 | 11 | 62.4 | 43.2 | 20 | 16 |
| 32 | 410 | 11.3 | 65.2 | 46.3 | 20 | 19 |
