Salient Features

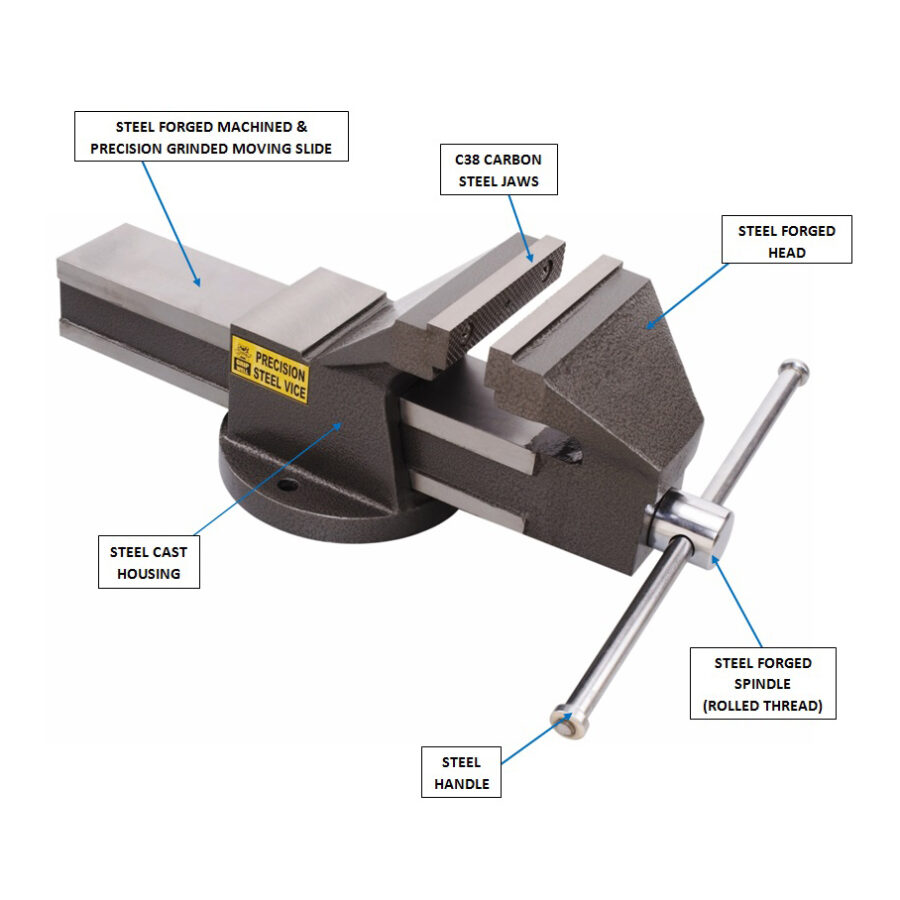

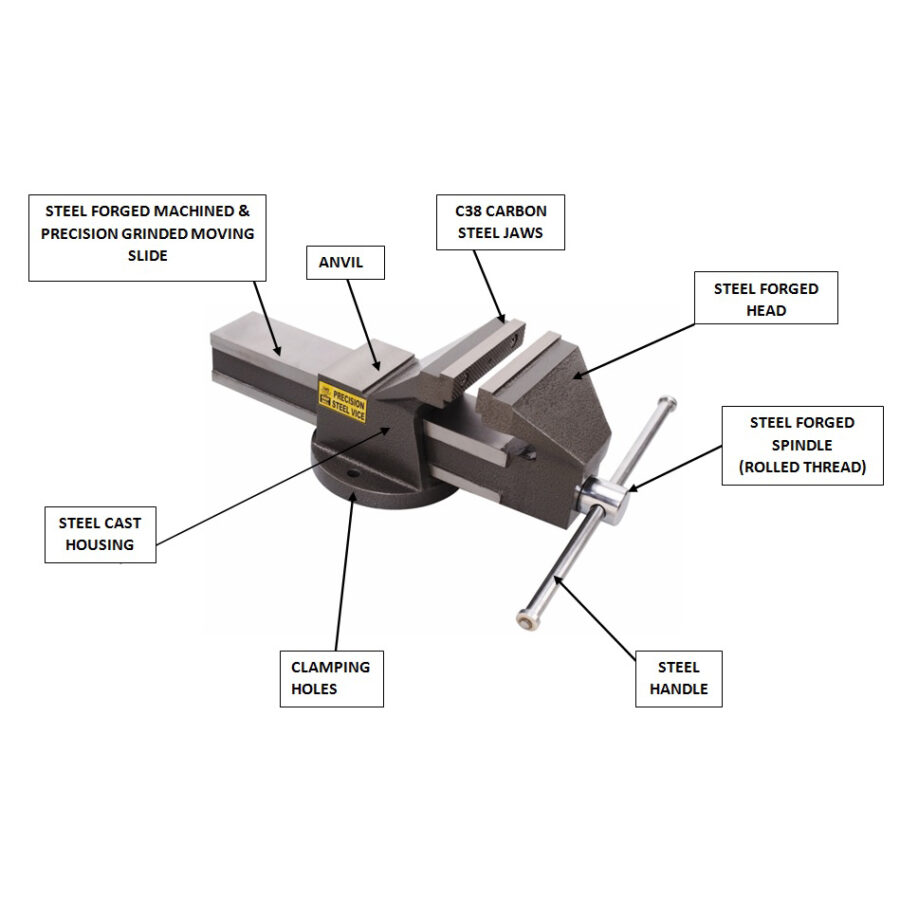

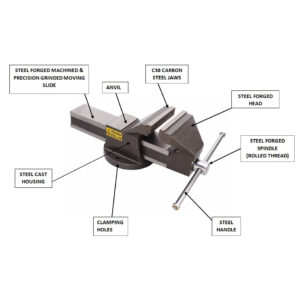

- Steel Body
- Chrome Plated Steel Spindle & Handle
- Hardened & Tempered C38 Carbon Steel,
- Interchangeable & Replaceable Jaws
- Each Vice adaptable from Fixed Base to Swivel Base

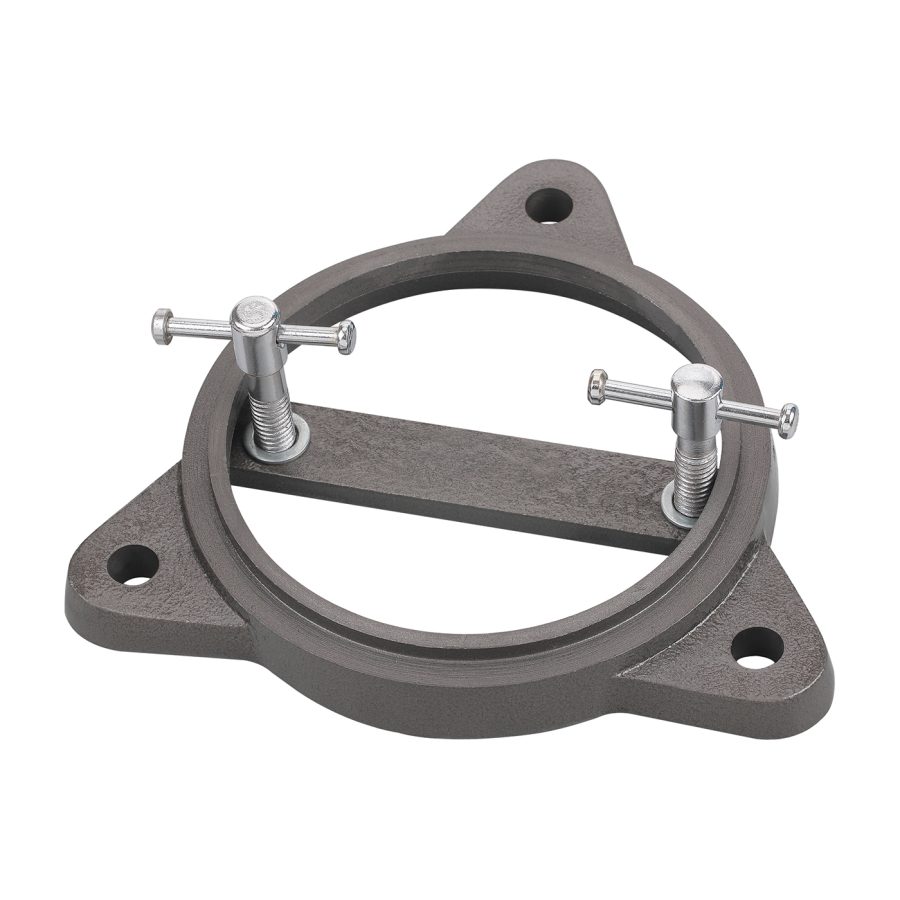

- Swivel Base Kit supplied separately
- Precision ground slide-ways for smooth operation
- Robust design and construction
- Conforms to (DIN) PA 80-3.5.2/03.07
Specifications
| Size (mm) | Size (inches) | Length of Jaw (L) (mm) | Opening of Jaw (O) (mm) | Jaw Dimension (mm) | Height of Jaw (H) (mm) | Packing per Carton (Pcs.) | Weight per Carton (Kgs.) (Fixed Base) | Weight per Carton (Kgs.) (Swivel Base) |
|---|---|---|---|---|---|---|---|---|
| 100 | 4 | 100 | 120 | 100 x 10 x 18 | 65 | 2 | 18 | 20 |
| 125 | 5 | 125 | 160 | 125 x 12 x 23 | 80 | 1 | 14 | 15 |
| 150 | 6 | 150 | 200 | 150 x 12 x 23 | 85 | 1 | 17 | 19 |
