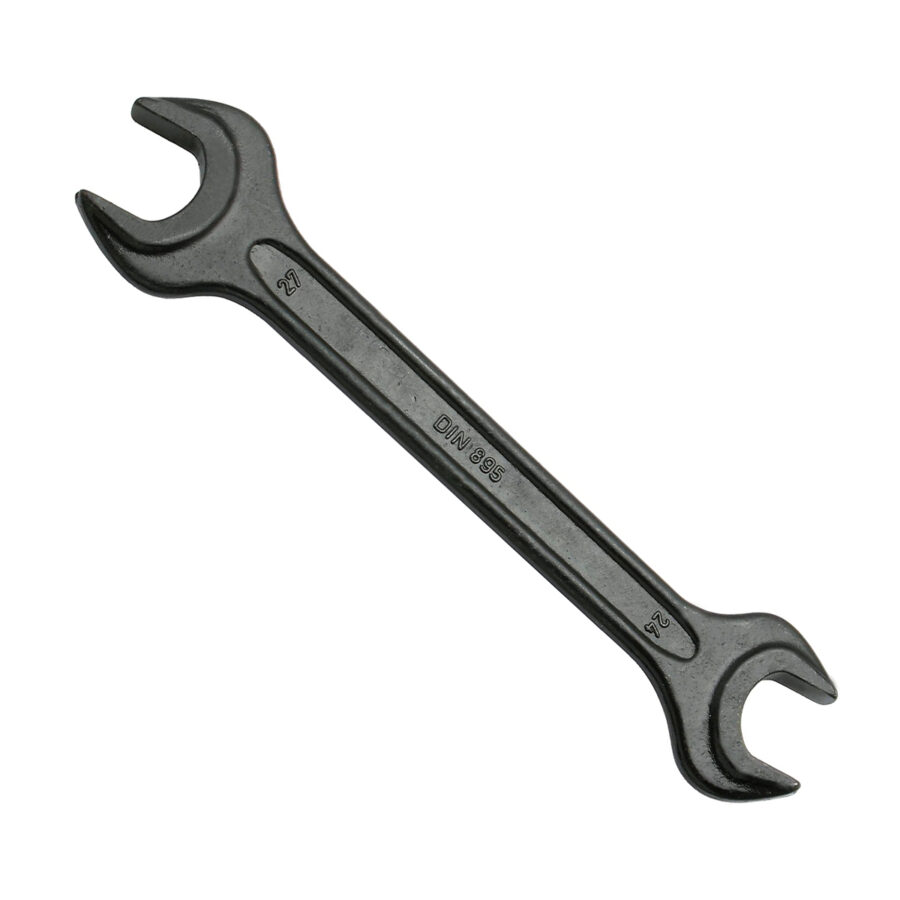

Salient Features
- Available in 31CrV3 Chrome Vanadium Steel and C38 Carbon Steel
- Full Hardened & Tempered
- Available in Phosphate Black & Matt Chrome Finish
- Conforms to DIN 895 / DIN 1711-691
Specifications

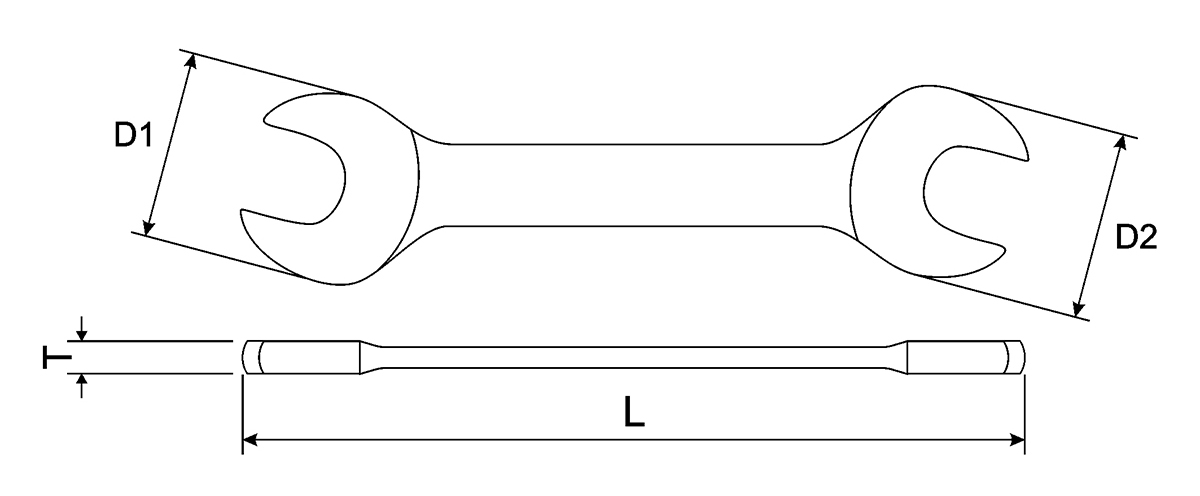

| Size (mm) | L (mm) | T (mm) | D1 (mm) | D2 (mm) | Packing / Carton | Gross Wt. (Kgs) |
|---|---|---|---|---|---|---|
| 6 x 7 | 95 | 3 | 14.5 | 16.5 | 800 | 16 |
| 8 x 9 | 105 | 3 | 16 | 19 | 600 | 13 |
| 8 x 10 | 114 | 3.8 | 17 | 21 | 600 | 15 |
| 10 x 11 | 122 | 5 | 21 | 23 | 500 | 16 |
| 10 x 13 | 127 | 5.8 | 21 | 26.5 | 400 | 17 |
| 12 x 13 | 135 | 5.5 | 26 | 28 | 300 | 16 |
| 12 x 14 | 135 | 5.5 | 26 | 28 | 300 | 16 |
| 13 x 14 | 150 | 6 | 28 | 30 | 240 | 17 |
| 14 x 15 | 150 | 5.5 | 28 | 30 | 240 | 16 |
| 13 x 17 | 150 | 6.5 | 30 | 35 | 200 | 15 |
| 14 x 17 | 150 | 6.5 | 30 | 35 | 200 | 15 |
| 16 x 18 | 165 | 7.5 | 34 | 37 | 160 | 16 |
| 17 x 19 | 171 | 6.6 | 36 | 40 | 160 | 16 |
| 19 x 22 | 190 | 7.8 | 39 | 45 | 120 | 17 |
| 19 x 24 | 198 | 7.8 | 38 | 48 | 120 | 17 |
| 22 x 24 | 218 | 9 | 44 | 48 | 80 | 16 |
| 24 x 27 | 234 | 9.3 | 50 | 55.5 | 60 | 15 |
| 24 x 30 | 234 | 9 | 50 | 58 | 60 | 15 |
| 27 x 30 | 260 | 9.8 | 55 | 61 | 50 | 16 |
| 27 x 32 | 260 | 10 | 56 | 64 | 50 | 17 |
| 30 x 32 | 260 | 10 | 60 | 63 | 40 | 14 |
| 32 x 36 | 305 | 13 | 65 | 73 | 24 | 14 |
| 36 x 41 | 343 | 14.5 | 72 | 82 | 20 | 16 |
| 41 x 46 | 382 | 15 | 82 | 90 | 16 | 16 |
| 46 x 50 | 422 | 16 | 90 | 100 | 12 | 15 |
| 50 x 55 | 463 | 16 | 100 | 110 | 8 | 14 |
| 55 x 60 | 513 | 16.5 | 110 | 120 | 8 | 17 |
