Salient Features
- 31CrV3 Chrome Vanadium Steel
- Full Hardened & Tempered 46 – 52 HRC
- Available in Chrome Plated Head Polish & Matt Finish
- Conforms to DIN3110 Long Series / DIN 1711-691
Specifications

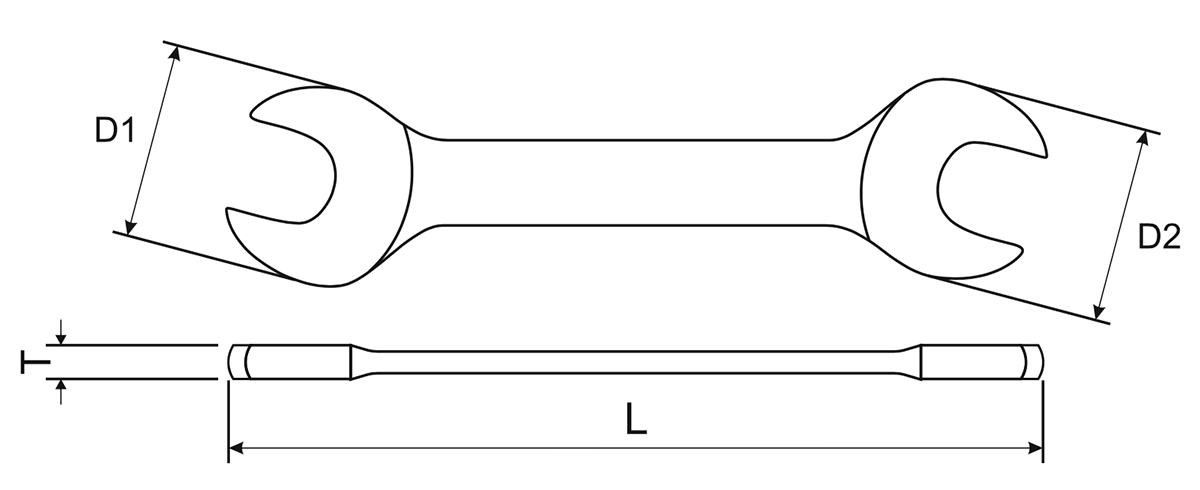

| Size (mm) | Size (SAE) | L (mm) | T (mm) | D1 (mm) | D2 (mm) | Packing / Carton | Gross Wt. (Kgs) |
|---|---|---|---|---|---|---|---|
| 6 x 7 | 1/4 x 5/16 | 123 | 4 | 16.5 | 18 | 720 | 17.88 |
| 8 x 9 | 5/16 x 11/32 | 137 | 4.2 | 19 | 21.5 | 500 | 16.2 |
| 10 x 11 | 153 | 4.8 | 23 | 25.5 | 360 | 17.11 | |
| 12 x 13 | 7/16 x 1/2 | 173 | 5.3 | 27.8 | 30.5 | 240 | 17.88 |
| 14 x 15 | 1/2 x 9/16 | 187 | 5’5 | 31.5 | 34 | 180 | 18.08 |
| 16 x 17 | 5/8 x 11/16 | 202 | 6 | 34.5 | 37.5 | 160 | 17.63 |
| 17 x 19 | 221 | 6.3 | 37.5 | 41.5 | 100 | 17.93 | |
| 18 x 19 | 221 | 6.3 | 39 | 41.5 | 100 | 17.93 | |
| 19 x 22 | 236 | 6.8 | 41.5 | 48.5 | 80 | 16.59 | |
| 20 x 22 | 25/32 x 7/8 | 236 | 6.8 | 44.5 | 48.5 | 80 | 16.59 |
| 21 x 23 | 7/8 x 15/16 | 246 | 7.5 | 44.5 | 48.5 | 60 | 15.36 |
| 24 x 26 | 265 | 8 | 49.5 | 53 | 40 | 14.64 | |
| 24 x 27 | 265 | 8 | 49.5 | 55 | 40 | 14.64 | |
| 25 x 28 | 275 | 8 | 52 | 58 | 40 | 15.16 | |
| 27 x 32 | 300 | 8.5 | 55 | 66 | 36 | 15.59 | |
| 30 x 32 | 1.1/8 x 1.1/4 | 300 | 8.5 | 61.5 | 66 | 36 | 18.16 |
