Salient Features
- Drop Forged C38 Carbon Steel
- Full Hardened & Tempered 40 – 42 HRC
- Chrome Plated Matt Finish
Specifications
| Size (mm) | Size (SAE) | L (mm) | T (mm) | D1 (mm) | D2 (mm) | Packing / Carton | Gross Wt. (Kgs) |
|---|---|---|---|---|---|---|---|
| 6 x 7 | 1/4 x 5/16 | 85 | 3 | 14 | 16 | 800 | 15.96 |
| 8 x 9 | 5/16 x 11/32 | 95 | 3.5 | 17.5 | 19 | 600 | 14.49 |
| 10 x 11 | 110 | 4 | 22 | 23 | 500 | 15.75 | |
| 12 x 13 | 7/16 x 1/2 | 126 | 5 | 25.5 | 27.5 | 400 | 16.8 |
| 14 x 15 | 1/2 x 9/16 | 146 | 5.5 | 29 | 31 | 240 | 15.88 |
| 16 x 17 | 5/8 x 11/16 | 162 | 5.5 | 33 | 36 | 180 | 16.44 |

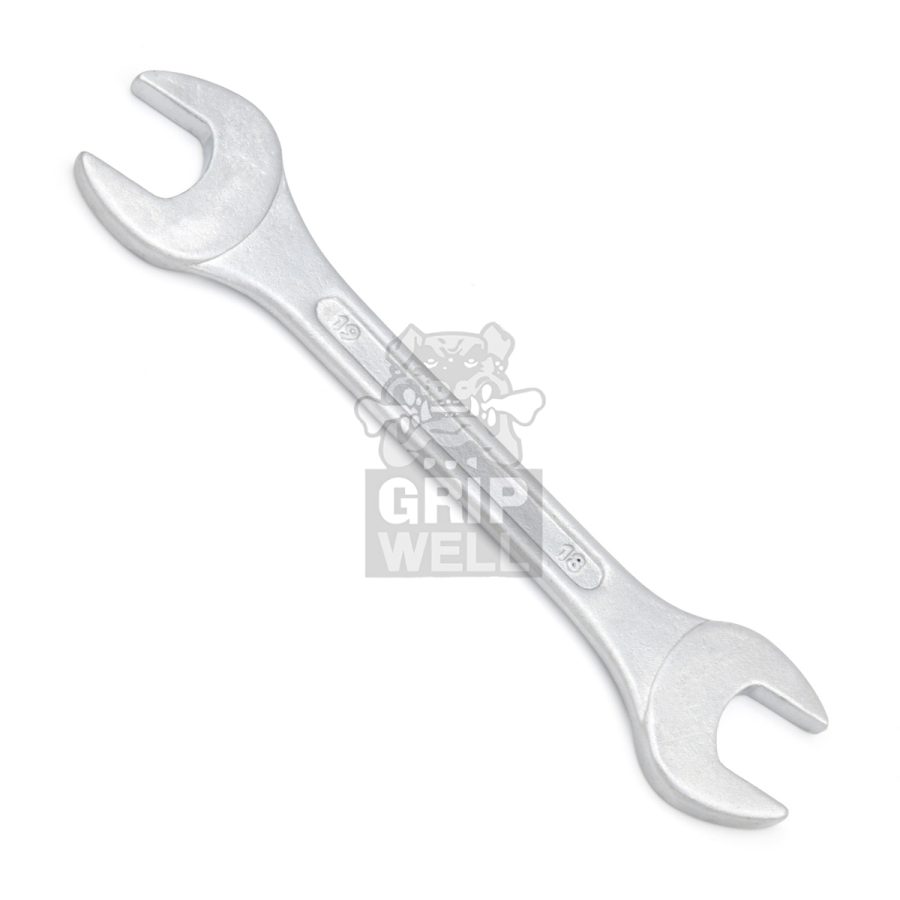

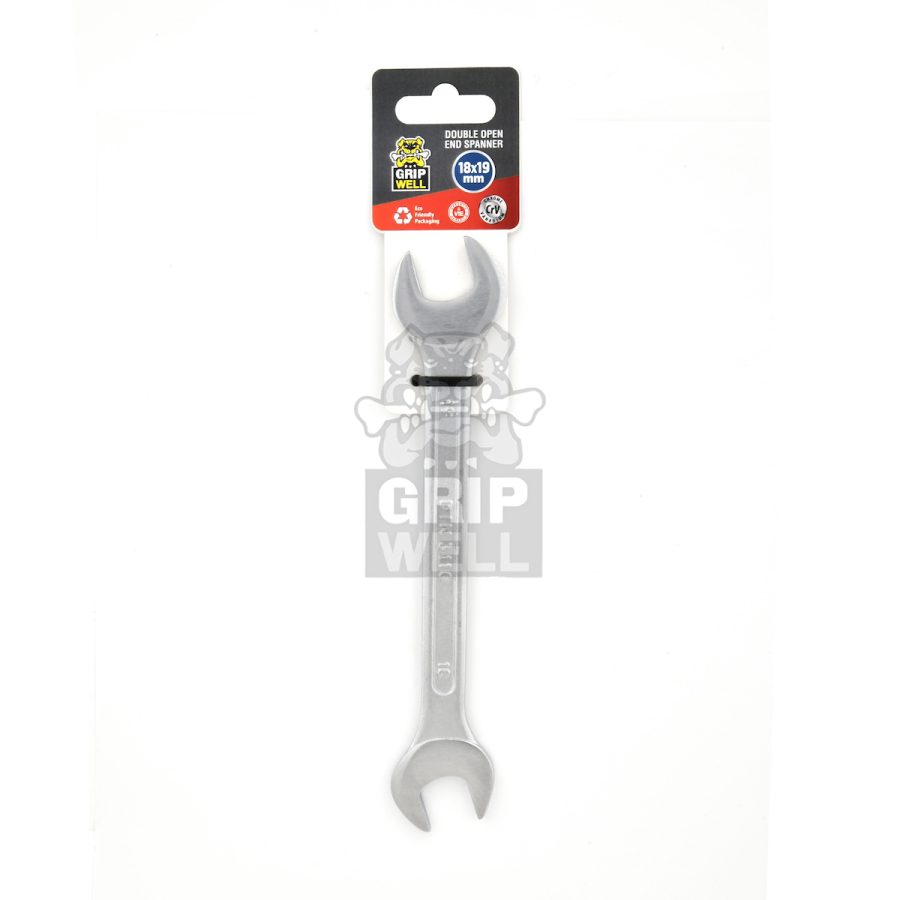

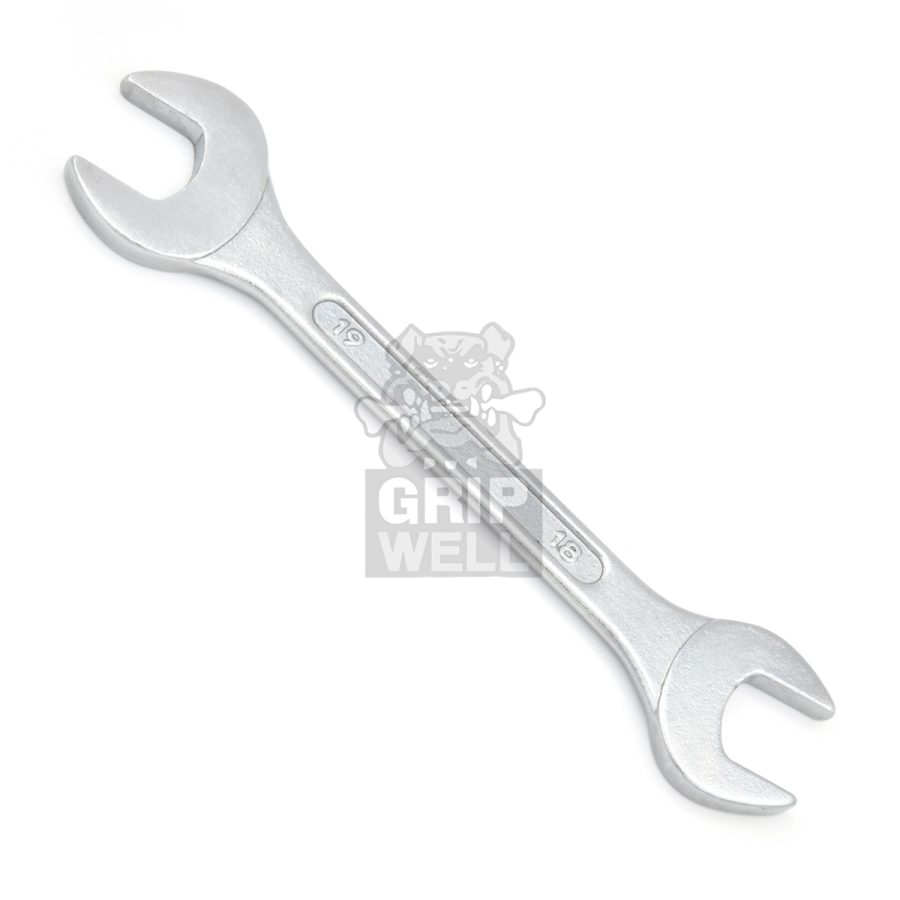

| 18 x 19 | 182 | 6.5 | 37.5 | 40 | 120 | 14.74 | |
| 20 x 22 | 25/32 x 7/8 | 200 | 7 | 40 | 43.5 | 100 | 15.54 |
| 21 x 23 | 7/8 x 15/16 | 212 | 7 | 41 | 45 | 100 | 17.54 |
| 24 x 27 | 236 | 7.5 | 48.5 | 53.5 | 80 | 15.96 | |
| 25 x 28 | 236 | 8 | 49 | 54.5 | 60 | 13.86 | |
| 30 x 32 | 1.1/8 x 1.1/4 | 248 | 8.5 | 58 | 62.5 | 40 | 14.62 |
